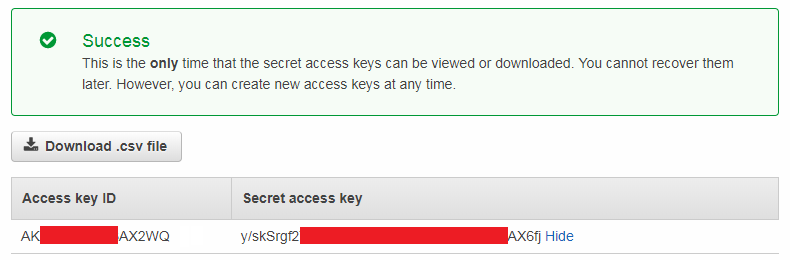

******************************************************************************** * Description: Send command from MSWIN AWS CLI to Linux server on cloud via SSM * Date: 12:09 PM EST, 03/19/2018 ******************************************************************************** <1> In some practical cases, a large company's IT environment could contain hundred or thousand servers on AWS Cloud needs to be patched: | |__ o. AWS provides an option that SYS admin can send Linux command within an API request to remote servers from Windows latop to remote servers, performing operation in batch. <2> Step 1 - Download and install AWS CLI for Windows platform: | |__ The Windows 64-bits .msi installer attached as "Download" option with the itme. | |__ Reference: https://docs.aws.amazon.com/cli/latest/userguide/awscli-install-windows.html#awscli-install-windows-path <3> Step 2 - Create AWS programatic access key pair: | |__ o. Login AWS Console ==> AMI ==> Users ==> Click on the choosen "username" ==> Security Credentials ==> Create access key ==> Save "Access key ID" [like username] and "Secret access key" [similar to password]. CAUTION: "Secert access key" only show up once when it got created. So, it needs to be saved properly somewhere. <4> Step 3 - Configuring AWS CLI with "Access Key Pair" on local Windows laptop via CMD: | |__ CMD> aws configure AWS Access Key ID: AKIOK8RM2WTOJ8J2HWSQ AWS Secret Access Key: BYpos8lDuuKPpqmJdqIdOl2UYZglXfydKhlLwqI+ Default region name [us-east-1]: us-east-1 Default output format [json]: json <5> Step 4 - Install Amazon Service System Manager[SSM Agent] on remote Cloud Linux servers: | |__ o. SSM is acting as an agent receiving commands from remote servers via AWS API to munipulate AWS services without log into console. | |__ o. Reference - https://docs.aws.amazon.com/systems-manager/latest/userguide/ssm-agent.html | |__ o. Different Linux Platform and version have various installation utility or method: | | |__ a) Redhat [64-bit]: | | | $ yum install -y https://s3.amazonaws.com/ec2-downloads-windows/SSMAgent/latest/linux_amd64/amazon-ssm-agent.rpm | $ systemctl status amazon-ssm-agent ............ [RHEL 7.x] | $ status amazon-ssm-agent ...................... [RHEL 6.x] | | |__ b) Ubuntu [64-bit, either of below installation utility]: $ wget https://s3.amazonaws.com/ec2-downloads-windows/SSMAgent/latest/debian_amd64/amazon-ssm-agent.deb $ dpkg -i amazon-ssm-agent.deb $ status amazon-ssm-agent ..................... [Ubuntu 14.x] $ systemctl status amazon-ssm-agent ........... [Ubuntu 16.x] <6> Step 5 - Grant SSM Policy to either AWS user or EC2 server IAM role: | |__ o. IAM Role: | | | |__ o. Login AWS console, and go to "IAM" | | ==> "Roles" | | ==> "Create Roles" | | ==> "AWS Services" | | ==> "EC2" | | ==> "EC2 Role for Simple Systems Manager" | | ==> "AmazonEC2RoleforSSM" | | ==> Assign the role to target EC2 instance. | | | |__ o. CAUTION: One EC2 instance could have only one IAM role, but "AmazonEC2RoleforSSM" can be attached with existing role. | | |__ o. AWS user: | |__ o. If the user have "Administor" permission, you can "add permission" and "attach existing policy directly" with "AmazonSSMFullAccess".
